Shearing

Shearing tools and metal processing for Italy and Europe

Contact

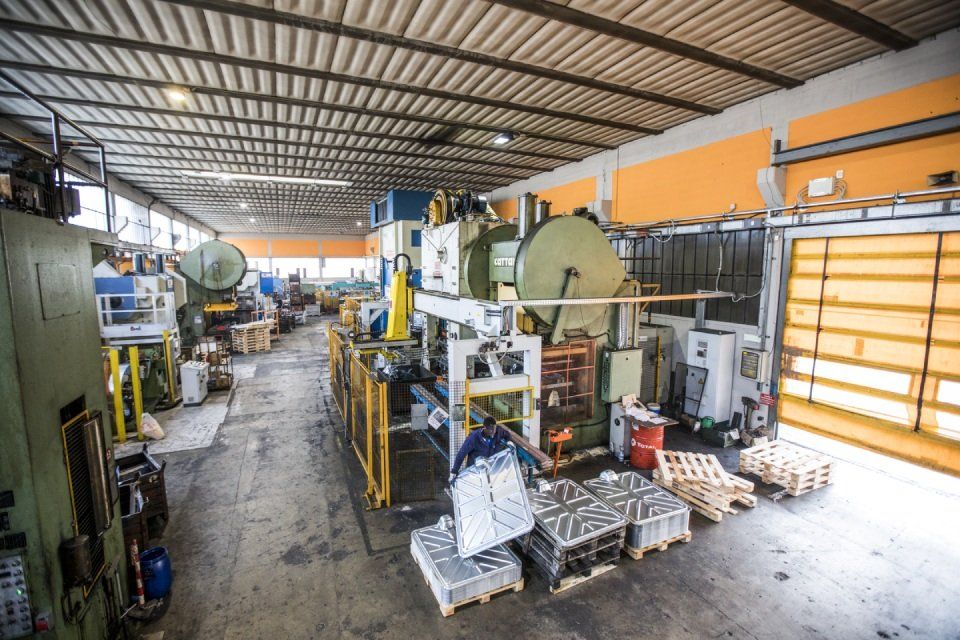

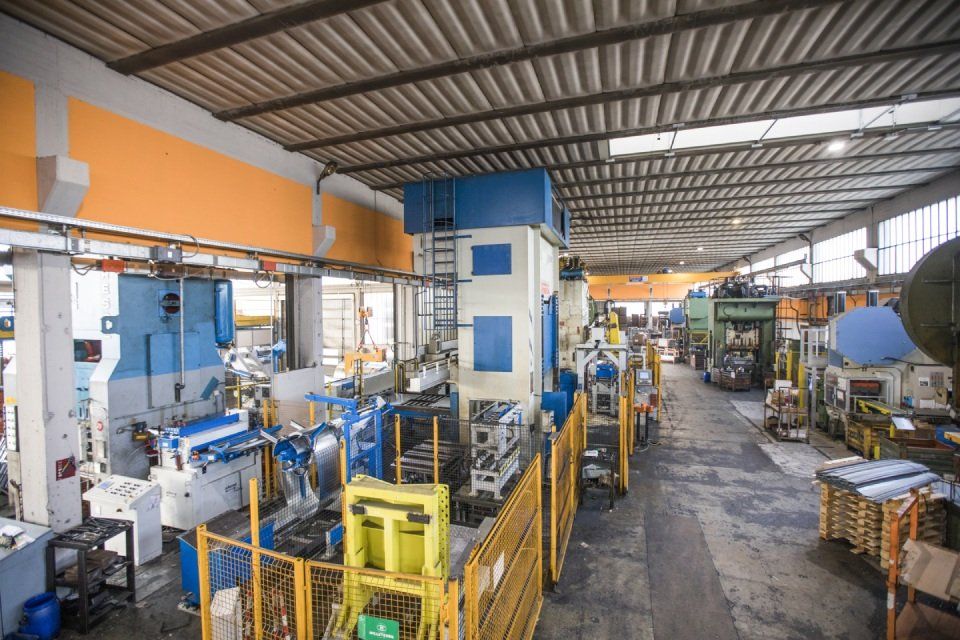

The shearing department is central to offer O.L.M.E.C. S.R..L. services. Here, in fact, up to 800 tons of precise shearing operations are performed (in addition to drawing and laser cutting of the sheet metal). Sophisticated and technologically advanced machinery, accurate design services, construction activities and dies production: the offer includes a wide range of activities aimed at meeting the needs of companies in different industrial sectors. Contact the headquarters on Via Padergnone 13, in Grassobbio for quotes on the shearing tools and other artefacts.
Competence
Courtesy
Qualified personnel
Professionalism

Fill out the contact form for details on sheet metal working and shearing tools

Sheet metal stamping, shearing and drawing: processing

Thanks to the knowledge gained over the years and to the innovative machinery, O.L.M.E.C. S.R.L. performs moulding, shearing and progressive drawing operations on steel and aluminium sheets. The dimensional capacities of the machines reach 2700 x 1600 mm.

Other works
  • sheet calendering;
  • sheet shaping;
  • metal oxycutting;
  • sheet metal assembly;
  • seaming seaming;
  • sheet metal punching;
  • sheet metal embossing;
  • sheet drilling;
  • sheet bending;
  • sheet painting;
  • sheet metal stamping;
  • sheet bending;
  • sheet metal welding;
  • sheets smoothing.

Stamping operation

The internal workshop takes care of the stamping operations of the materials through particularly high-performance machinery. The versatility of the machinery is fundamental to work a wide range of materials and to ensure meticulous workmanship.
  • Cold stamping steel;
  • Cold stamping metal;
  • Cold stamping aluminium;
  • Cold stamping carbon iron;
  • steel shearing;
  • aluminium shearing;
  • shearing end shearing mask.

Design and production of punched parts and dies construction

Experience and state-of-the-art technologies are the foundation of O.L.M.E.C. S.R.L.'s success. The workshop on Via Padergnone 13, in Grassobbio is, in fact, set up with new generation work tools. The machinery of the production department is able to offer shearing tools and aluminium, sheet metal and steel progressive drawing operations. The company specialises in the design and production of dies with advanced CAD-CAM programs. The technical staff offers a valid contribution and support in order to meet your requests and the production needs.
Q.ty Description Technical characteristics Trademark
1 Hydraulic press 800 tons Table dimensions 2600 x 1600 mm- stroke 350 automated materials
loading and unloading 1500 x 3 feeding - Capacity 150 ql		 OMERA
1 Mechanical press 320 tons Automated materials loading and unloading - table dimensions 1520x 1000 CLERING INNOCENTI
1 Mechanical press 250 tons SWAN NECK MECHANICAL PRESS - press table 2000 x 1100 mm CATTANEO
1 Programmable axes, with Cartesian and rotating Movements Combined with Omera 800 tons - Clering Innocenti 320 tons and Cattaneo 250 tons NORDA
1 Mechanical press 630 tons DOUBLE SIDE UPRIGHT - table dimensions 2700 x 1600 mm
compact feeding 1000 x 3		 OMERA
1 Mechanical press 400 tons Table dimensions 2200 x 1500 mm with compact feeding 1000 x 3 MANZONI
1 Mechanical press 400 tons SWAN NECK 2 RODS - table dimensions 2300 x 1100 mm with feeding 600 x 1,5 MANZONI
1 Hydraulic press 400 tons Table dimensions 1600 x 1200 mm ROVETTA
1 Mechanical press 250 tons DOUBLE SIDE UPRIGHT Table dimensions 1400 x 1000 mm with Syndal
feeding 400 x 5 mm		 ROSS
1 Mechanical press 250 tons Table dimensions 2000 x 1100 mm RADAELLI
1 Mechanical press 250 tons Table dimensions 1200 x 800 mm with electronic feeding 600 x 1.5 - Aspo 3 tons ORMUT
1 Mechanical press 200 tons Table dimensions 1300 x 650 mm with electronic feeding 400 x 6 mm press control system ROSS
7 Mechanical presses From 30 to 200 tons Benelli 30 Tons
Ross 60 Tons
Manzoni
60-120-160-200-100 Tons
1 Laser 1500Wt Sheet metal up to 120/10 x 2500 x 1250 special steel and aluminium max 30/10 x 1250 x 2500 MAZAK
1 Press brake 60 tons CNC Program 3 axes – 3000 mm GADE
1 Slitter 300 x 6 with Cartesian and rotating movements VIMERCATI
3 Threading Machines - IM
1 Threading Machine - RECORD
5 Punching Machines - CEA

Metal processing: materials

The manufacturing of items and metal parts depends on the accurate design, the precision of the operators and the technological skills of the company. Likewise, the quality of the raw materials is essential to complete a service that meets the ISO standards. Shearing tools production and all possible processes are performed on a wide range of materials.
  • iron sheets;
  • steel sheets;
  • sheet metal;
  • iron steel sheets;
  • stainless steel sheets;
  • iron sheets;
  • aluminium sheet.

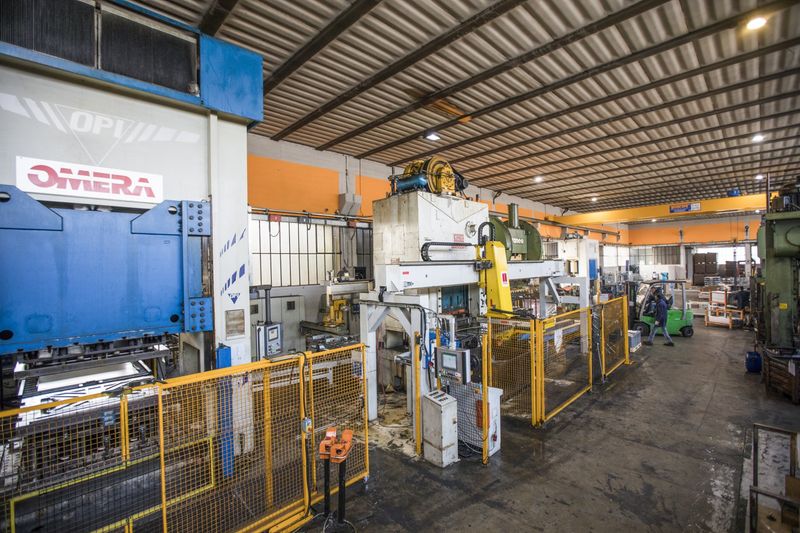

Machinery for sheet metal punching

For more details on shearing and mass production, write using the contact form

Request a quote

Information request

O.L.M.E.C. S.R.L. will provide information on its products and services. From shearing tools to sheet metal press-bending, from series dies to aluminium prototypes: the staff offers customised estimates according to customer needs. Contact the company, find the contact details indicated on the contacts page. An expert will give you all the necessary answers as soon as possible.
